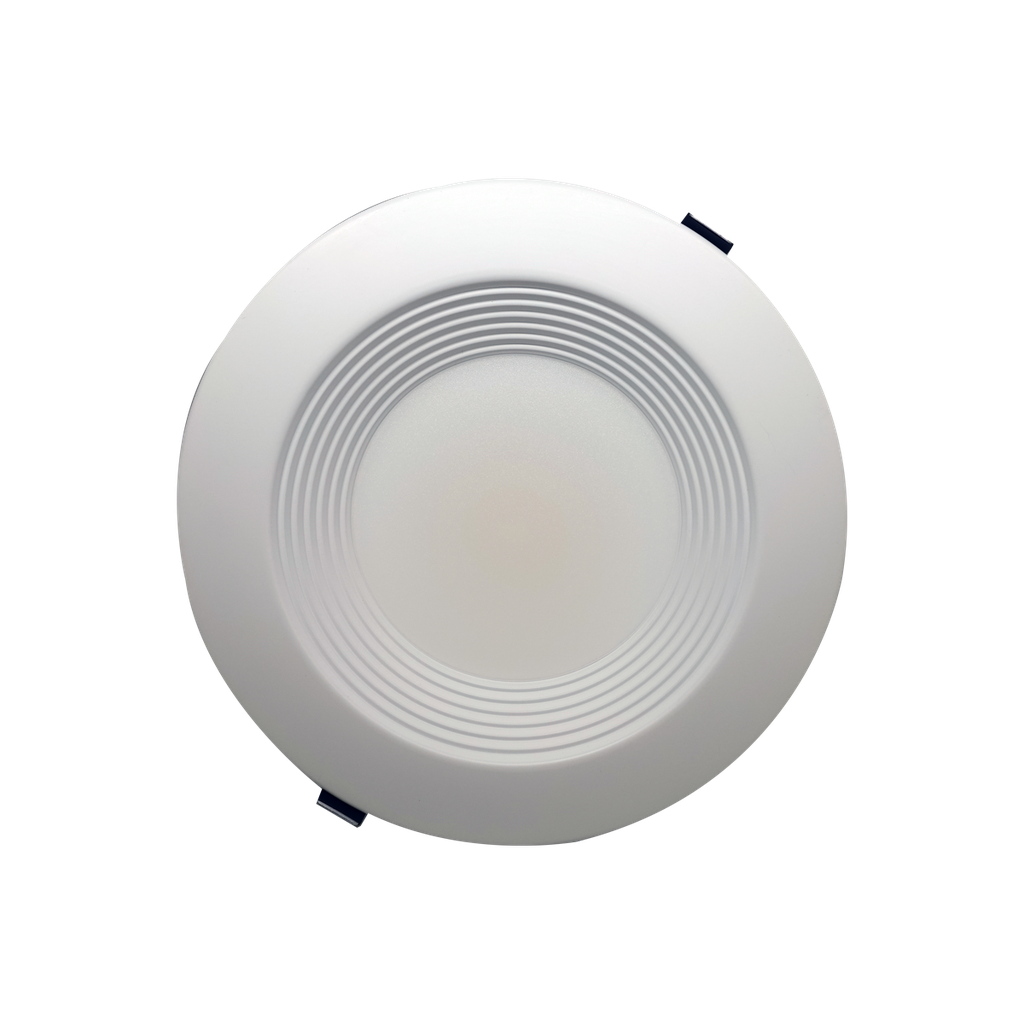

RENO Commercial Downlights (ZETA Series)

RENO’s Multifunctional Downlight is a commercial grade downlight fixture. This Energy Star qualified downlight with integrated driver, designed as an energy efficient lighting solution for the Commercial’s popular ”/6”/8”/10” recessed downlight adjustable wattages and colour temperature. Features Dual Voltage 120-347V and easy installation with adjustable wattages and colour temperature.

KEY SPECIFICATIONS

• Voltage 120-347V
• Wattage Selectable Wattage
• 4” – 9/13/18W
• 6” – 10/16/27W
• 8” – 18/27/36W
• 10” – 22/34/45W
• Size 4”, 6”, 8”, 10”
• Power Factor >0.9
• CCT 27/30/35/40/5000K
• CRI >93
• Lumens 837 – 4,185 lm
• Beam Angle 95º
• Dimming 0-10V, 120V TRIAC
• Mounting Recessed Ceiling

RENO LED DOWNLIGHTS PRODUCT FEATURES

• EnergyStar Certified
• JA8 Compliant
• Flexibility in Dimming Control: Supports both 0-10V and TRIAC dimming (120V)
• Suitable for Type-IC on models: 4”, 6”, & 8“
• External spring arms install to mounting surface without the need for a traditional recessed can
• 25.5” (650mm) BX Whip
• Frosted Polycarbonate Lens
• ABS Trim and Body
• Operating temperature: -13ºF to +113ºF (-25ºC to +45ºC)
• Damp location suitable
• Rated Lifespan: L70 ~50,000 hrs

5 YEAR WARRANTY
